What is the Sidekick Library?

The Sidekick Library is an extension for the AEM Sidekick that enables developers to create UI-driven tooling for content authors. It includes a built-in blocks plugin that can display a list of all blocks to authors in an intuitive manner, removing the need for authors to remember or search for every variation of a block. Developers can also write their own plugins for the sidekick library.

How to use the Sidekick Library?

The steps below detail how to setup the sidekick library and configure the blocks plugin.

Library Sheet Setup

The sidekick library is populated with your plugins and plugin content using a sheet.

1. Start by creating a directory in sharepoint or gdrive where you want to store the content for the library. We recommend storing the content in /tools/sidekick (or any other name) in the root of the mountpoint. The next steps will assume the directory is called /tools/sidekick.

2. Next, create a workbook (an Excel file) in the /tools/sidekick directory called library (or any other name). Each sheet in the workbook represents a plugin that will be loaded by the Sidekick Library. The name of the sheet determines the name of the plugin that will be loaded. Any data contained in the sheet will be passed to the plugin when loaded. The plugin sheet name must be prepended with helix-. For example, if you want to load a plugin called tags, you would create a sheet named helix-tags.

3. For this tutorial we will create a sheet for our blocks plugin. Create a sheet (or rename the default sheet) and call it `helix-blocks` and leave it empty for now.

Blocks Plugin

The Sidekick library comes with a blocks plugin.

Blocks Plugin Setup

To generate content for the blocks plugin, you need to prepare a separate Word document for each block you want to include.

1. Create a directory inside the /tools/sidekick directory where you will store all the block variations. For example, you could create a directory called blocks inside /tools/sidekick.
2. For this example, let's assume we want to define all the variations of a block called columns. First create a Word document called columns inside the blocks directory and provide examples of all the variations of the columns block. After each variation of the block add in a section delimiter.
3. Preview and publish the columns document.
4. Open the library workbook created in the last section, inside the helix-blocks sheet, create two columns named name and path.
6. Next we need to add a row for our columns block. Add the name of the block in the first column and the url to the document that defines the block variations in the second column. For instance, if you want to add the columns block, you could create a row with the name Columns and the path /tools/sidekick/blocks/columns. In order for the library to work across environments (page, live, prod) you should not use an absolute url for the path column.
7. Preview and publish the library workbook.

> Since the example blocks are being published you should use bulk metadata to exclude the content inside of /tools/** from being indexed.

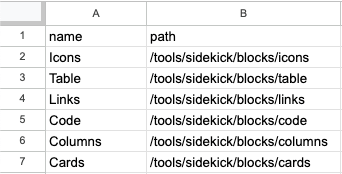

Example library.xlsx

Library Metadata

The blocks plugins supports a special type of block called library metadata which provides a way for developers to tell the blocks plugin some information about the block or how it should be rendered.

Supported library metadata options

Default Library metadata vs Library metadata

There are two types of library metadata. Library metadata that lives within a section containing the block, or default library metadata that applies to the document as a whole and lives in a section on it's own (a block called library metadata as the only child in a section).

Let's take an example of a hero block that has 5 variants. Suppose you want to add the same description for each variation of the block, rather than duplicating the library metadata with the description into each section containing the variations. You could instead use default library metadata to apply the same description to every variation of the block. If you decide that one variation actually needs a slightly different description you could add library metadata to the section containing the variation and it would override the default library metadata description when it's rendered within the blocks plugin.

Authoring block names and descriptions using Library Metadata

By default the block name (with variation) will be used to render the item in the blocks plugin. For example, if the name of the block is columns (center, background) then that name will be used as the label when it’s rendered in the blocks plugin. This can be customized by creating a library metadata section within the same section as the block. Library metadata can also be used to author a description of the block as well as adding searchTags to include an alias for the block when using the search feature.

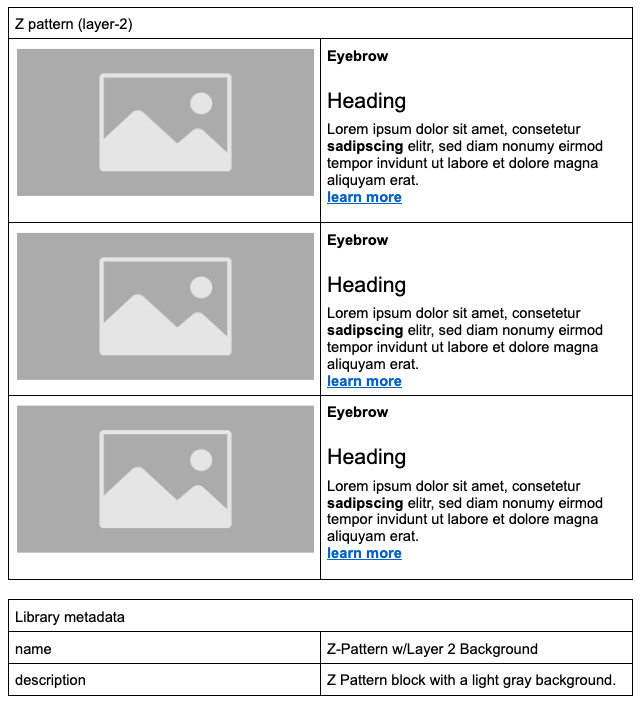

Example block with custom name and description

Content

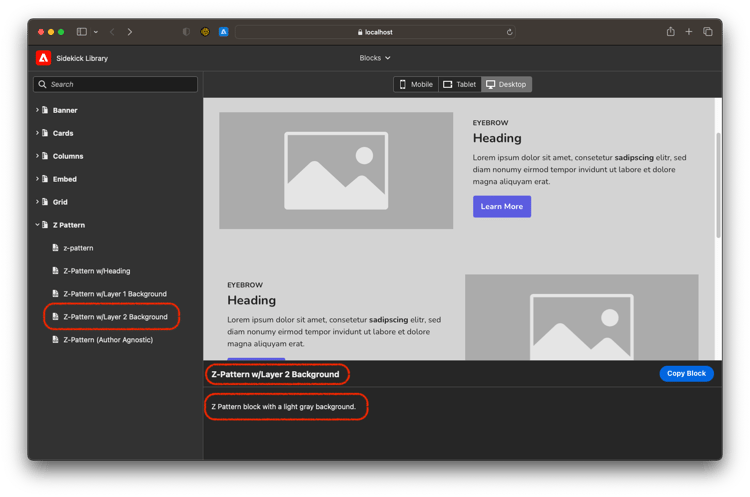

Display

Autoblocks and Default Content

The blocks plugin is capable of rendering default content and autoblocks. In order to achieve this, it is necessary to place your default content or autoblock within a dedicated section, which should include a library metadata table defining a name property, as previously described. If no name is specified in the library metadata, the item will be labeled as "Unnamed Item."

Blocks composed of content in subsequent sections

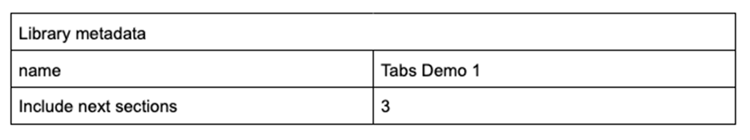

There are situations where developers may want a block to consist of content from subsequent sections. This pattern is discouraged for reasons stated here, but if you choose to use it the blocks plugin can render these items using the include next sections property in library metadata.

Templates

Templates are a way to group an entire document into a single element in the sidekick library. To mark a document as a template set type to template in default library metadata.

> Important, the library metadata needs to be in it's own section and be the only child to be considered default library metadata.

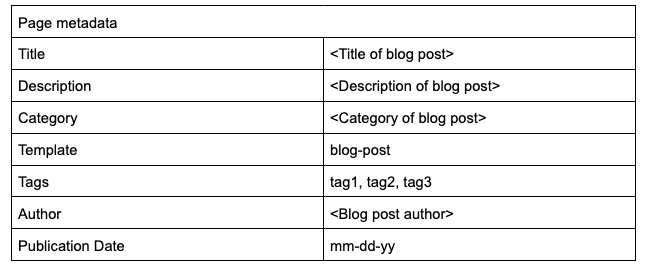

Supporting metadata is also desirable for templates. To add a metadata table to the template you can use a Page metadata block.

When the template is copied a metadata with the values will be added along with the content to the clipboard.

Sidekick plugin setup

Since the sidekick library is hosted on the same origin as the content, a static HTML page needs to be created to load and configure the content.

1. Create a file called library.html in tools/sidekick/;

2. Paste the following code in library.html.

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="utf-8" />
    <meta
      name="viewport"
      content="width=device-width, initial-scale=1.0, viewport-fit=cover"
    />
    <meta name="Description" content="AEM Sidekick Library" />
    <meta name="robots" content="noindex" />
    <base href="/" />

    <style>
      html,
      body {
        margin: 0;
        padding: 0;
        font-family: sans-serif;
        background-color: #ededed;
        height: 100%;
      }

      helix-sidekick { display: none }
    </style>
    <title>Sidekick Library</title>
  </head>

  <body>
    <script
      type="module"
      src="https://www.aem.live/tools/sidekick/library/index.js"
    ></script>
    <script>
      const library = document.createElement('sidekick-library')
      library.config = {
        base: '/tools/sidekick/library.json',
      }

      document.body.prepend(library)
    </script>
  </body>
</html>

In the code above we load the sidekick library from aem.live and then create a custom sidekick-library element and add it to the page. The sidekick-library element accepts a config object that is required to configure the sidekick library.

Supported configuration parameters

The blocks plugin supports the following configuration properties that can be set using the plugins object.

Blocks plugin configuration parameters

Examples

Encoding images

const library = document.createElement('sidekick-library')
library.config = {
  base: '/tools/sidekick/library.json',
  plugins: {
    blocks: {
      encodeImages: true,
    }
  }
}

Custom viewports (short form)

const library = document.createElement('sidekick-library')
library.config = {
  base: '/tools/sidekick/library.json',
  plugins: {
    blocks: {
      viewPorts: [600, 900],
    }
  }
}

Custom viewports

const library = document.createElement('sidekick-library')
library.config = {
  base: '/tools/sidekick/library.json',
  plugins: {
    blocks: {
      viewPorts: [
        {
          width: '599px',
          label: 'Small',
          icon: 'device-phone',
        },
        {
          width: '899px',
          label: 'Medium',
          icon: 'device-tablet',
        },
        {
          width: '100%',
          label: 'Large',
          icon: 'device-desktop',
          default: true,
        },
      ],
    }
  }
}

Custom table header colors

You can customize the table header background and foreground color when pasting a block, section metadata or metadata that was copied from the blocks plugin.

Default styles can be set in library.html using css variables.

 <style>
    :root {
      --sk-block-table-background-color: #03A;
      --sk-block-table-foreground-color: #fff;

      --sk-section-metadata-table-background-color: #f30;
      --sk-section-metadata-table-foreground-color: #000;

      --sk-metadata-table-background-color: #000;
      --sk-metadata-table-foreground-color: #fff;
    }
  </style>

These values can be overridden using library metadata.

> Depending on the system color scheme selected for the users computer (dark mode), Word may alter the chosen colors in an attempt to improve accessibility.

Custom plugin setup

The example below defines a tags plugin in the config. The keys of the plugins object must match the name of the plugin, any other properties defined in the plugin object will be available to the plugin via the context argument of the decorate method.

const library = document.createElement('sidekick-library')
library.config = {
  base: '/tools/sidekick/library.json',
  plugins: {
    tags: {
      src: '/tools/sidekick/plugins/tags/tags.js',
      foo: 'bar'
    }
  }
}

Extended Libraries

In some cases merging two block libraries may be desirable. When an extended library is defined the sidekick library application will merge the base library and the extended library together into a single library list for authors.

The example below defines a base library and an extended library (on another origin) that will be merged into the base library.

const library = document.createElement('sidekick-library')
library.config = {
  base: '/tools/sidekick/library.json',
  extends: 'https://main--repo--owner.hlx.live/tools/sidekick/library.json'
}

> The Access-Control-Allow-Origin headers will need to be set on the library.json and blocks of the extended library in order for them to load in the sidekick library. See Custom HTTP Response Headers for more info.

> Due to same-origin policies enforced by browsers on iframes a preview of an extended block cannot be loaded at this time.

Sidekick config.json setup

Next, in order for the sidekick library to appear in the sidekick a config file needs to be created at tools/sidekick/config.json. This config file needs to be created in the code bus and should be checked into github.

{
  "project": "Example",
  "plugins": [
    {
      "id": "library",
      "title": "Library",
      "environments": ["edit"],
      "url": "/tools/sidekick/library.html",
      "includePaths": ["**.docx**"]
    }
  ]
}

The url property in the plugin configuration indicates the location from which the sidekick should load the plugin. This should point to the library.html file we previously created.

> The sidekick config must be checked into the main branch in order to for the plugin to appear in the sidekick.

> If the tools/sidekick/config.json file does not exist in your github repository, it must be created. For more information on sidekick plugin configuration options, see the docs.

Considerations when building blocks for the library

The sidekick library renders blocks by first fetching the plain.html rendition of the the block and then strips it of any other blocks in the content (for example if there are multiple variations of a block in the response). It then requests the same page (without .plain.html) and replaces the main element with the stripped block and loads the entire document into an iframe using the srcdoc attribute.

Use of window.location

Since the block is loaded in an iframe using the srcdoc attribute, the instance of the window.location object used by your sites code will not contain the typical values you would expect to see.

Example window.location object when running in the library

{
  "host": "",
  "hostname": "",
  "href": "about:srcdoc"
  "origin": "null"
  "pathname": "srcdoc"
  "port": ""
  "protocol": "about:"
}

For this reason, if your block requires use of the window.location object we recommend adding the following functions to your scripts.js file and importing them into your function for use.

/**
 * Returns the true origin of the current page in the browser.
 * If the page is running in a iframe with srcdoc, the ancestor origin is returned.
 * @returns {String} The true origin
 */
export function getOrigin() {
  const { location } = window;
  return location.href === 'about:srcdoc' ? window.parent.location.origin : location.origin;
}

/**
 * Returns the true of the current page in the browser.mac
 * If the page is running in a iframe with srcdoc,
 * the ancestor origin + the path query param is returned.
 * @returns {String} The href of the current page or the href of the block running in the library
 */
export function getHref() {
  if (window.location.href !== 'about:srcdoc') return window.location.href;

  const { location: parentLocation } = window.parent;
  const urlParams = new URLSearchParams(parentLocation.search);
  return `${parentLocation.origin}${urlParams.get('path')}`;
}

Use of createOptimizedPicture in lib-aem

The createOptimizedPicture function in lib-aem also uses window.location.href. If you are using this function we recommend moving it into scripts.js and modify it to use the getHref() function above.

Checking for the presence of the sidekick library

Sometimes you may want to know if the page or the block is running in the sidekick library. To do this there are a couple of options.

1. Check if window.location.href === 'about:srcdoc'

2. The main element and the block element will contain the sidekick-library class

Building a Plugin

Developing a plugin is similar to constructing a block in AEM. Once a user tries to load the plugin, the sidekick library will trigger the decorate() method on your plugin. This method receives the container to render the plugin in and any data that is included in the plugins sheet.

/**
 * Called when a user tries to load the plugin
 * @param {HTMLElement} container The container to render the plugin in
 * @param {Object} data The data contained in the plugin sheet
 * @param {String} query If search is active, the current search query
 * @param {Object} context contains any properties set when the plugin was registered
 */
export async function decorate(container, data, query, context) {
  // Render your plugin
}

> The decorate() function must be exported from the plugin.

Plugin default export & search

The default export from a plugin allows authors to customize the plugin name displayed in the header upon loading, as well as activate the search functionality within the sidekick library.

export default {
  title: 'Tags',
  searchEnabled: true,
};

When the searchEnabled property is true, the library header will display a search icon upon loading the plugin. If the user initiates a search by entering a query, the decorate() function of the plugin will be triggered again, this time with the search string passed in the query parameter of the decorate() function.

Plugin web components

Plugin authors can utilize a select set of web components from Spectrum when building a custom plugin.

The following components from Spectrum are available

The following icons from Spectrum are also available

Plugin Events

Plugin authors can dispatch events from their plugin to the parent sidekick library in order to display a loader or to show a toast message.

Toast Messages

import { PLUGIN_EVENTS } from 'https://www.aem.live/tools/sidekick/library/events/events.js';

export async function decorate(container, data, query) {
  // Show a toast message
  container.dispatchEvent(new CustomEvent(PLUGIN_EVENTS.TOAST,  { detail: { message: 'Toast Shown!', variant: 'positive | negative' } }))
}

Show and Hide Loader

import { PLUGIN_EVENTS } from 'https://www.aem.live/tools/sidekick/library/events/events.js';

export async function decorate(container, data, query) {
  // Show loader
  container.dispatchEvent(new CustomEvent(PLUGIN_EVENTS.SHOW_LOADER))
  ...
  // Hide loader
  container.dispatchEvent(new CustomEvent(PLUGIN_EVENTS.HIDE_LOADER))
}

Example plugin

Tags Plugin

Plugin API Example
