Managing tabular data with AEM authoring as your content source

For any AEM with Edge Delivery Services site, there is a need to maintain lists of tabular data such as for key-value mappings. These can be lists of many different values such as metadata and redirects. Edge Deliver Services allows you to maintain such tabular lists using an intuitive tool: the spreadsheet. AEM translates these spreadsheets into JSON files that can easily be consumed by your website or web application.

Common use cases include:

• Placeholders
• Metadata
• Headers
• Redirects
• Configurations such as for CDN setups

In addition, you can create your spreadsheets of any structure to store mappings for your own purposes.

This document uses the example of redirects to illustrate how to create such spreadsheets. See the previously-linked topics in the Edge Delivery Services documentation for details of each use case.

TIP: For more information on how spreadsheets in general work with Edge Delivery Services, please see the document Spreadsheets and JSON.

TIP: Spreadsheets should only be used to maintain tabular data. For storing structured data, check out AEM’s headless features.

Creating a spreadsheet

In this example, you will create a spreadsheet to manage redirects for your project with AEM authoring as your content source. The same steps apply to other spreadsheet types that you wish to create.

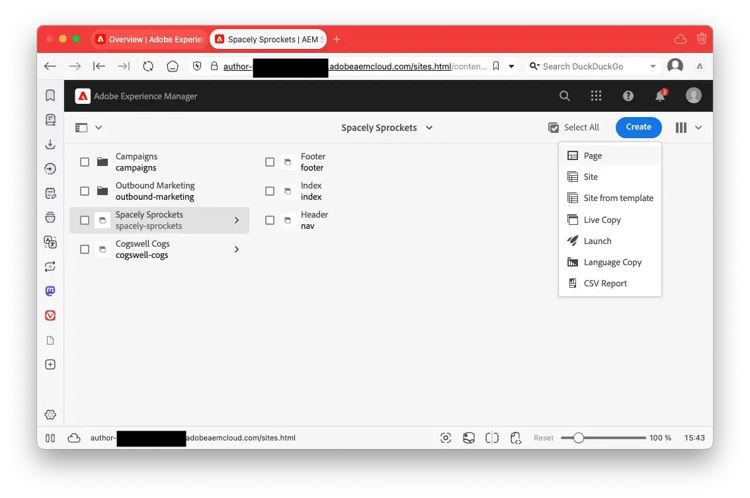

1. Sign in to your AEM as a Cloud Service authoring instance, go to the Sites console, and navigate to the root of the site which requires a spreadsheet. Tap or click Create → Page.

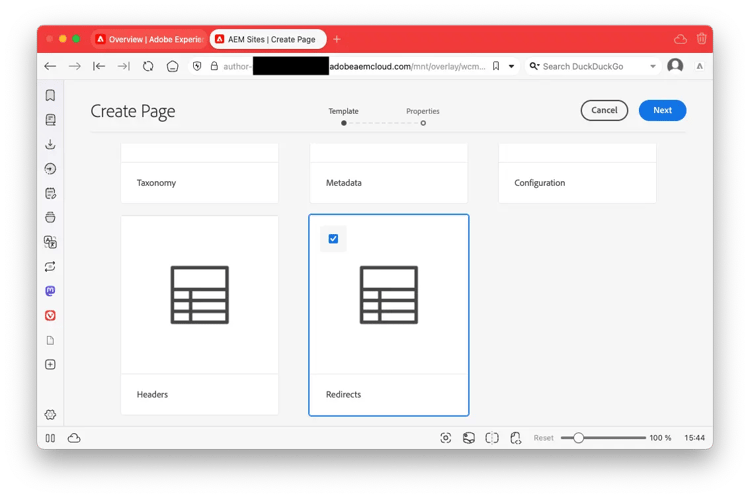

2. On the Template tab of the create page wizard, tap or click the Redirects template to select it and then tap or click Next.

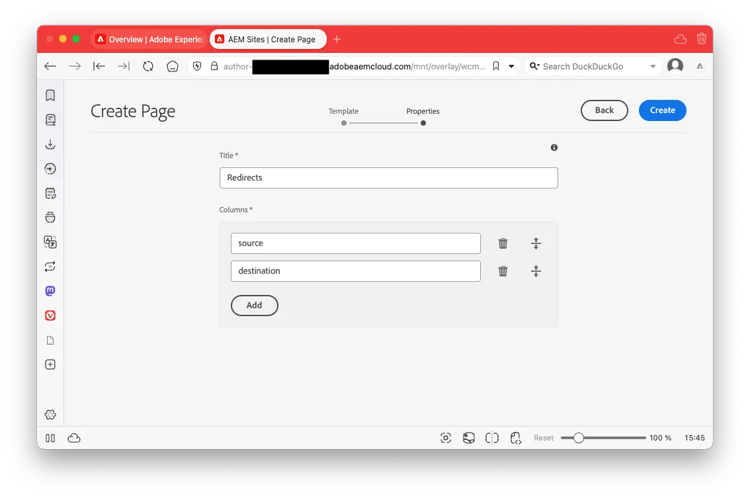

3. The Properties tab of the wizard presents the default values for the redirects spreadsheet. Tap or click Create.
   • Title - Leave this value as-is.
   • Columns - The minimum columns needed for redirects are prepopulated.
     • source - The page to be redirected
     • destination - The page to redirect to

4. In the Success dialog, tap or click Open.

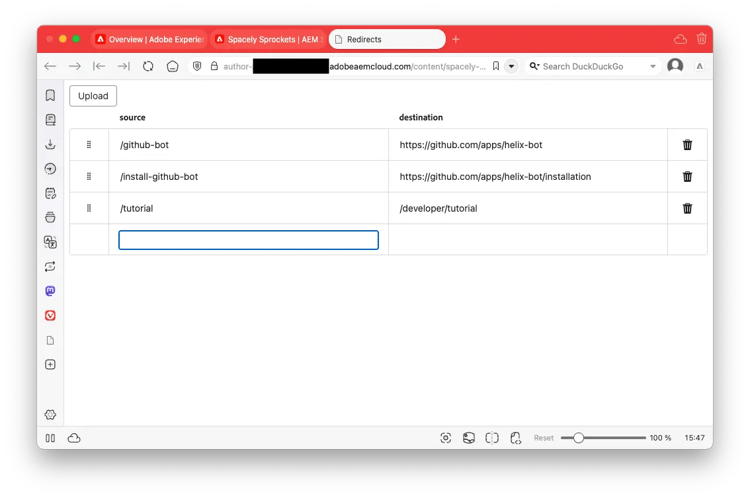

5. A new tab opens with the spreadsheet loaded into an editor with the predefined source and destination columns. To define your redirects, tap or click the empty row of the source column. Changes are saved automatically as you edit the spreadsheet.

• The source is relative to the domain of your website, so it only contains the relative path.
• The destination can be either a fully qualified URL if you are redirecting to a different website, or it can be a relative path if you are redirecting within your own website.
• Use the tab-key to move focus to the next cell.
• The editor adds new rows to the spreadsheet as necessary.
• To delete or move a row, use the Delete icon at the end of each row and the drag handles at the beginning of each row, respectively.

Importing spreadsheet data

In addition to editing spreadsheets in the AEM Page Editor, you can also import data from a CSV file.

1. When editing your spreadsheet in AEM, tap or click the Upload button at the top-left of the screen.
2. In the drop-down, select how you would like to import your data.
   • Replace Doc to replace the content of the entire spreadsheet with the content of the CSV file you will upload.
   • Append To Doc to append the data of the CSV file you will upload to the existing spreadsheet contents.
3. In the dialog that opens, select your CSV file and then tap or click Open.

A dialog opens as the import is processed. Once complete, the data in the CSV file is added to or replaces the content of the spreadsheet. If any errors are encountered such as a mismatch of columns, they are reported so you can correct your CSV file.

NOTE: Keep the following in mind when importing data.

• The headings in the CSV file must match the columns in the spreadsheet exactly.
• Importing the entire CSV does not modify the column headings, only the content rows.
• If you need to update the columns, you must do that in the AEM Page Editor before performing the import of the CSV.
• A CSV file can not be larger than 10 MB for import.

Depending on your selection of mode, you can also create, replace, or append to spreadsheets using a CSV and a cURL command similar to the following.

curl --request POST \
  --url http://<aem-instance>/bin/asynccommand \
  --header 'content-type: multipart/form-data' \
  --form file=@/path/to/your.csv \
  --form spreadsheetPath=/content/<your-site>/<your-spreadsheet> \
  --form 'spreadsheetTitle=Your Spreadsheet' \
  --form cmd=spreadsheetImport \
  --form operation=asyncSpreadsheetImport \
  --form _charset_=utf-8 \
  --form mode=append

The call returns an HTML page with information about the job ID.

Message | Job(Id:2024/9/18/15/27/5cb0cacc-585d-4176-b018-b684ad2dfd02_90) created successfully. Please check status at Async Job Status Navigation.

You can use the Jobs console to view the status of the job or use the ID returned to query it.

https://<aem-instance>/bin/asynccommand?optype=JOBINF&jobid=2024/10/24/14/1/8da63f9e-066b-4134-95c9-21a9c57836a5_1

Publishing a spreadsheet paths.json

In order for AEM to be able to publish the data in your spreadsheet, you additionally need to update the paths.json file of your project.

1. Open the root of your project in GitHub.

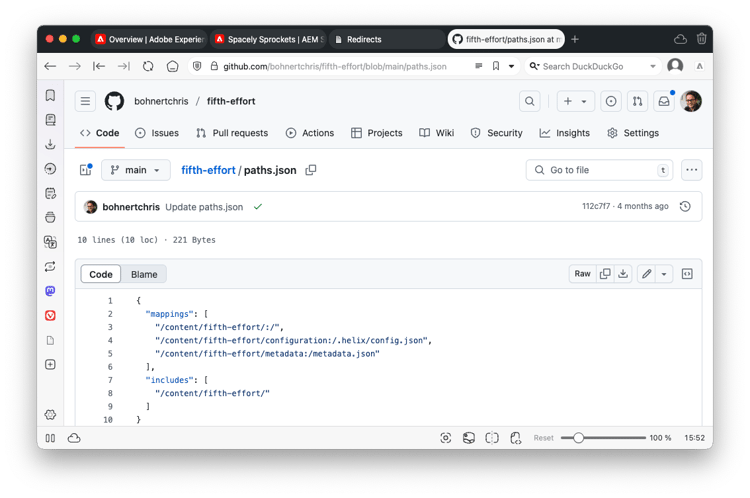

2. Tap or click the paths.json file to open its details and then the Edit icon.

3. Add a line to map your new spreadsheet to a redirects.json resource.

{
  "mappings": [
   "/content/<site-name>/:/",
   "/content/<site-name>/redirects:/redirects.json"
  ]
}

• NOTE This paths.json entry is based on the example of creating redirects using tabular data. Make sure to update the path appropriate to the type of spreadsheet you are creating.

4. Click Commit changes… to save the changes to main.
   • Either commit to main or create a pull request as per your process.
5. When you are finished defining your redirects and you updated the path mapping, return to the Sites console.

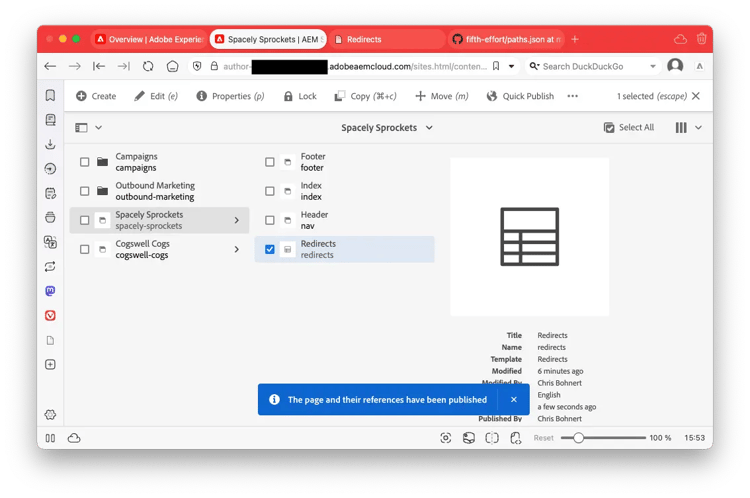

6. Tap or click to select the redirects spreadsheet that you created in the console and then tap or click Quick Publish in the actions bar to publish the spreadsheet.

7. In the Quick Publish dialog, tap or click Publish.
8. A banner confirms the publication.


The redirects spreadsheet is now published and publicly-accessible.

TIP: For more information about path mappings, please see the document Path Mapping for Edge Delivery Services.

Other spreadsheet types

Now that you know how to create a redirects spreadsheet, you can create any other standard spreadsheet type:

• Placeholders
• Metadata
• Headers
• Configuration - Such as for cache invalidation
• Taxonomy

Simply follow the same steps in the sections Create Spreadsheet and Publish paths.json and choose the appropriate template and update the paths.json file appropriately.

For Configuration, Headers and Metadata make sure to add a mapping to publish them to their default locations:

• Configuration: /.helix/config.json
• Headers: /.helix/headers.json
• Metadata: /metadata.json
• Taxonomy: Please see the document Managing Taxonomy Data for more information.

Additionally, you can create your own spreadsheet with arbitrary columns for your own use.

NOTE: You do not need to create a spreadsheet to manage indexing for AEM as a Cloud Service with Edge Delivery Services projects. If you wish to create your own indices, please follow this documentation to create your own helix-query.yaml file.

Creating your own spreadsheet

1. Follow the same steps in the section Create Spreadsheet.
2. When selecting the template, choose Spreadsheet.

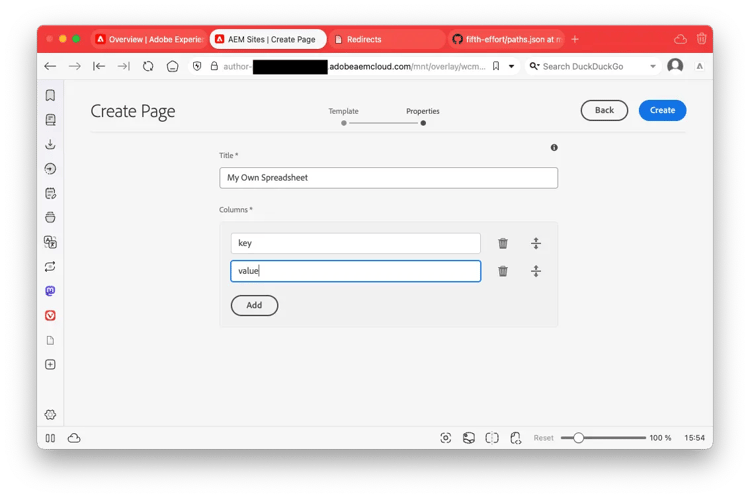

3. In the Properties tab of the wizard, you can add your own columns.

   • In the Columns section, tap or click Add to add a new column.
   • Provide a name for the column.
   • Remove or reorganize the columns using the Delete and drag handle icons, respectively.
4. Create the spreadsheet and publish as per the instructions for the redirects spreadsheet.
5. Add a mapping to the paths.json file as per the instructions for the redirects spreadsheet.
